R108減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑250，負載17噸，一分鐘走9米

9米÷（0.25輪子直徑×3.14）=11.46轉每分鐘

17噸換算成N=170000N

170000×0.125輪子半徑×0.06摩擦系數=1275N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍1275×2=2550N.m

電機轉數1400÷輸出轉數11.46=122.16比

2550N.m輸出扭矩÷122.16比=20.87N.m電機扭矩

20.87N.m電機扭矩換算成功率3.31KW以上

對應的R108減速機選型參數：

型號：R108-B4KW

減速比：127.68

輸出轉數：11轉每分鐘

輸出扭矩：3340N.m

安全系數：1.30

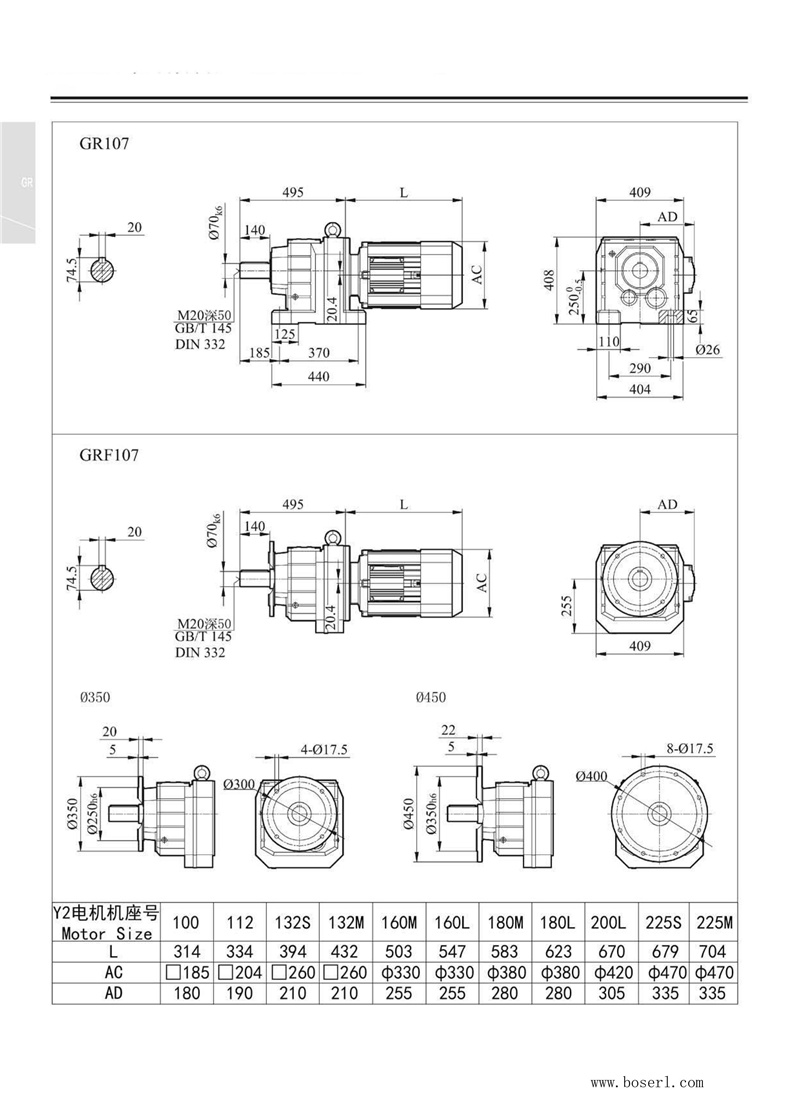

R108減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

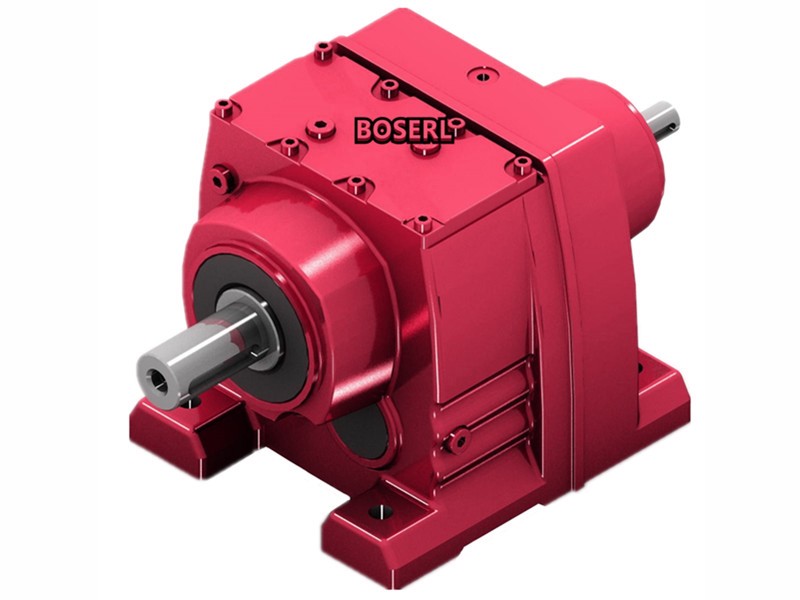

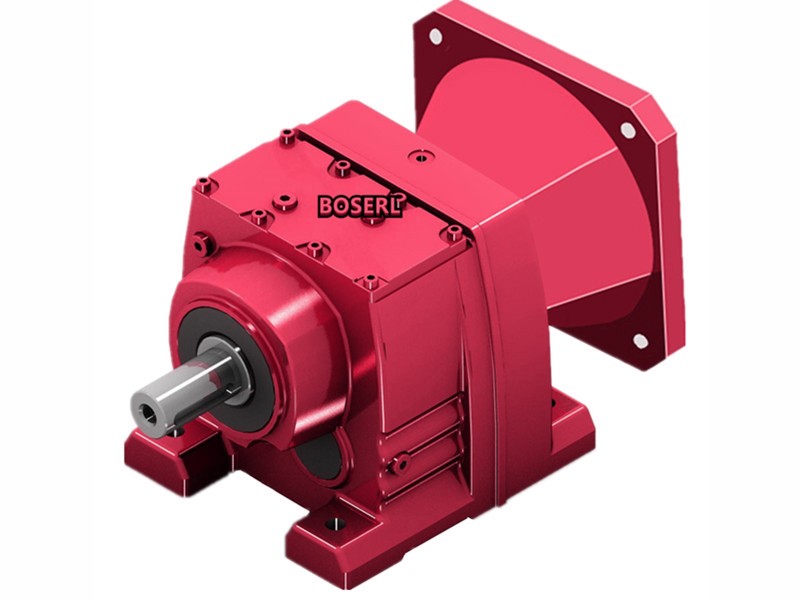

R108臥式硬齒面斜齒輪減速機型號：

R107FDM100L4,R107FDM100LC4,R107FDM100LS4,R107FDM100M4,R107FDM112M4,R107FDM132L4,R107FDM132M4,R107FDM132MC4,R107FDM132ML4,R107FDM132S4,R107FDM160L4,R107FDM160M4,R107FDM160MC4,R107FDM160S4,R107FDM180L4,R107FDM180LC4,R107FDM180M4,R107FDM180S4,R107FDM200L4,R107FDM225M4,R107FDM225S4,R107FDM90L4,R107FDM90M4,R107FDM90S4,R107FDR100L4,R107FDR100LC4,R107FDR100LS4,R107FDR100M4,R107FDR112M4,R107FDR132L4,R107FDR132M4,R107FDR132MC4,R107FDR132ML4,R107FDR132S4,R107FDR160L4,R107FDR160M4,R107FDR160MC4,R107FDR160S4,R107FDR180L4,R107FDR180LC4,R107FDR180M4,R107FDR180S4,R107FDR200L4,R107FDR225M4,R107FDR225S4,R107FDR90L4,R107FDR90M4,R107FDR90S4,R107FDRE100L4,R107FDRE100LC4,R107FDRE100LS4,R107FDRE100M4,R107FDRE112M4,R107FDRE132L4,R107FDRE132M4,R107FDRE132MC4,R107FDRE132ML4,R107FDRE132S4,R107FDRE160L4,R107FDRE160M4,R107FDRE160MC4,R107FDRE160S4,R107FDRE180L4,R107FDRE180LC4,R107FDRE180M4,R107FDRE180S4,R107FDRE200L4,R107FDRE225M4,R107FDRE225S4,R107FDRE90L4,R107FDRE90M4,R107FDRE90S4,R107FDRN100L4,R107FDRN100LC4,R107FDRN100LS4,R107FDRN100M4,R107FDRN112M4,R107FDRN132L4,R107FDRN132M4,R107FDRN132MC4,R107FDRN132ML4,R107FDRN132S4,R107FDRN160L4,R107FDRN160M4,R107FDRN160MC4,R107FDRN160S4,R107FDRN180L4,R107FDRN180LC4,R107FDRN180M4,R107FDRN180S4,R107FDRN200L4,R107FDRN225M4,R107FDRN225S4,R107FDRN90L4,R107FDRN90M4,R107FDRN90S4,R107FDRS100L4,R107FDRS100LC4,R107FDRS100LS4,R107FDRS100M4,R107FDRS112M4,R107FDRS132L4,R107FDRS132M4,R107FDRS132MC4,R107FDRS132ML4,R107FDRS132S4,R107FDRS160L4,R107FDRS160M4,R107FDRS160MC4,R107FDRS160S4,R107FDRS180L4,R107FDRS180LC4,R107FDRS180M4,R107FDRS180S4,R107FDRS200L4,R107FDRS225M4,R107FDRS225S4,R107FDRS90L4,R107FDRS90M4,R107FDRS90S4,R107FDT100L4,R107FDT100LC4,R107FDT100LS4,R107FDT100M4,R107FDT112M4,R107FDT132L4,R107FDT132M4,R107FDT132MC4,R107FDT132ML4,R107FDT132S4,R107FDT160L4,R107FDT160M4,R107FDT160MC4,R107FDT160S4,R107FDT180L4,R107FDT180LC4,R107FDT180M4,R107FDT180S4,R107FDT200L4,R107FDT225M4,R107FDT225S4,R107FDT90L4,R107FDT90M4,R107FDT90S4,R107FDV100L4,R107FDV100LC4,R107FDV100LS4,R107FDV100M4,R107FDV112M4,R107FDV132L4,R107FDV132M4,R107FDV132MC4,R107FDV132ML4,R107FDV132S4,R107FDV160L4,R107FDV160M4,R107FDV160MC4,R107FDV160S4,R107FDV180L4,R107FDV180LC4,R107FDV180M4,R107FDV180S4,R107FDV200L4,R107FDV225M4,R107FDV225S4,R107FDV90L4,R107FDV90M4,R107FDV90S4,R107FDVE100L4,R107FDVE100LC4,R107FDVE100LS4,R107FDVE100M4,R107FDVE112M4,R107FDVE132L4,R107FDVE132M4,R107FDVE132MC4,R107FDVE132ML4,R107FDVE132S4,R107FDVE160L4,R107FDVE160M4,R107FDVE160MC4,R107FDVE160S4,R107FDVE180L4,R107FDVE180LC4,R107FDVE180M4,R107FDVE180S4,R107FDVE200L4,R107FDVE225M4,R107FDVE225S4,R107FDVE90L4,R107FDVE90M4,R107FDVE90S4,R107F-Y1.5KW,R107F-Y100M4,R107F-Y112M4,R107F-Y11KW,R107F-Y132M4,R107F-Y15KW,R107F-Y160M4,R107F-Y18.5KW,R107F-Y180M4,R107F-Y2.2KW,R107F-Y200M4,R107F-Y225M4,R107F-Y22KW,R107F-Y30KW,R107F-Y37KW,R107F-Y3KW,R107F-Y45KW,R107F-Y4KW,R107F-Y5.5KW,R107F-Y7.5KW,R107F-Y90M4,R107F-YEJ1.5KW,R107F-YEJ100M4,R107F-YEJ112M4,R107F-YEJ11KW,R107F-YEJ132M4,R107F-YEJ15KW,R107F-YEJ160M4,R107F-YEJ18.5KW,R107F-YEJ180M4,R107F-YEJ2.2KW,R107F-YEJ200M4,R107F-YEJ225M4,R107F-YEJ22KW,R107F-YEJ30KW,R107F-YEJ37KW,R107F-YEJ3KW,R107F-YEJ45KW,R107F-YEJ4KW,R107F-YEJ5.5KW,R107F-YEJ7.5KW,R107F-YEJ90M4,R107F-YVP1.5KW,R107F-YVP100M4,R107F-YVP112M4,R107F-YVP11KW,R107F-YVP132M4,R107F-YVP15KW,R107F-YVP160M4,R107F-YVP18.5KW,R107F-YVP180M4,R107F-YVP2.2KW,R107F-YVP200M4,R107F-YVP225M4,R107F-YVP22KW,R107F-YVP30KW,R107F-YVP37KW,R107F-YVP3KW,R107F-YVP45KW,R107F-YVP4KW,R107F-YVP5.5KW,R107F-YVP7.5KW,R107F-YVP90M4,R107F-YVPEJ1.5KW,R107F-YVPEJ100M4,R107F-YVPEJ112M4,R107F-YVPEJ11KW,R107F-YVPEJ132M4,R107F-YVPEJ15KW,R107F-YVPEJ160M4,R107F-YVPEJ18.5KW,R107F-YVPEJ180M4,R107F-YVPEJ2.2KW,R107F-YVPEJ200M4,R107F-YVPEJ225M4,R107F-YVPEJ22KW,R107F-YVPEJ30KW,R107F-YVPEJ37KW,R107F-YVPEJ3KW,R107F-YVPEJ45KW,R107F-YVPEJ4KW,R107F-YVPEJ5.5KW,R107F-YVPEJ7.5KW,R107F-YVPEJ90M4。

R107系列減速機參數大全：同軸斜齒輪減速電機

R107F減速機配2.2KW電機參數

R107F減速機配3KW電機參數

R107F減速機配4KW電機參數

R107F減速機配5.5KW電機參數

R107F減速機配7.5KW電機參數

R107F減速機配11KW電機參數

R107F減速機配15KW電機參數

R107F減速機配18.5KW電機參數

R107F減速機配22KW電機參數

R107F減速機配30KW電機參數

R107F減速機配37KW電機參數

R107F減速機配45KW電機參數

R108減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R98減速機
